I.Introduction

• H9035 is designed by Jinan Huarui Technology Co.,Ltd for processing tubes up to 9 meters in length and with a diameter of 350 mm;

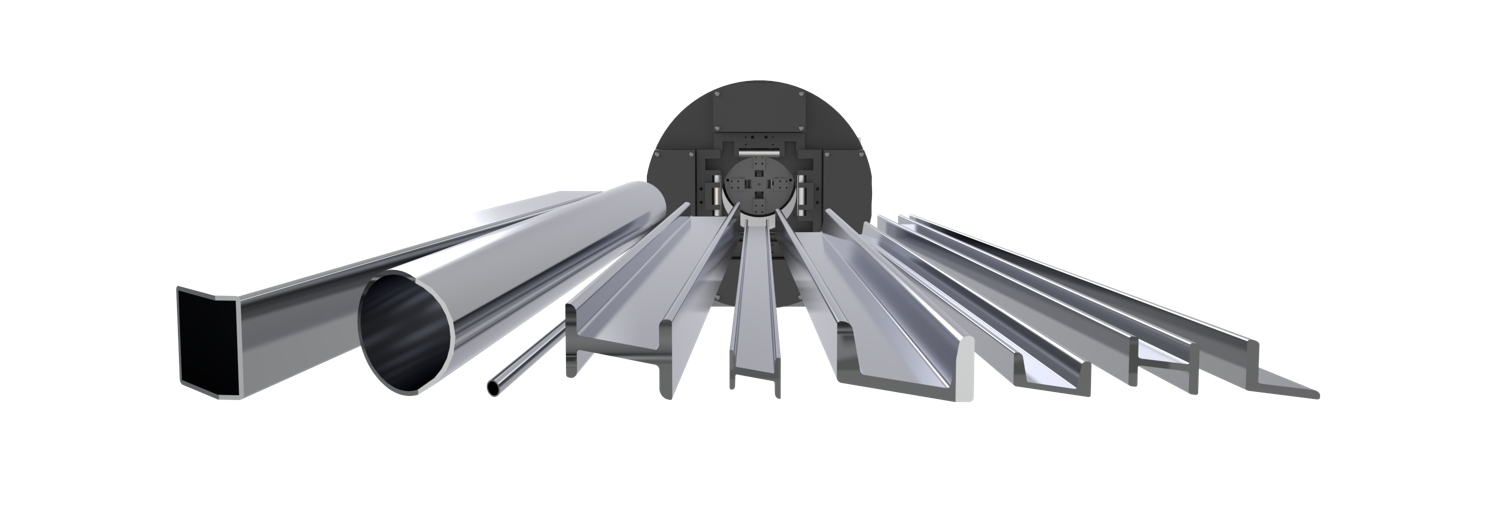

• It supports various shapes, including round tubes, square tubes, rectangular tubes, and profiles such as L shape, U shape, H beam, etc;
• Our fiber laser tube cutting machines guarantee minimal waste, achieving an actual tailing of “0”;
• The pipe processing range is 9000 mm in length and accommodates diameters from φ20 to 350 mm (for square tubes: 20 mm x 20 mm to 245 mm x 245 mm);
• H9035 metal tube laser cutting machine is equipped with a fiber laser device that offers laser power options of 1.5 kW, 2 kW, 3 kW, 4 kW, and 6 kW;

II.Technical Parameter

Item	Parameter
	3kW, 4kW, 6kW
Pipe length	2000~9000mm
Pipe diameter	Φ20~Φ350mm
X/Y axis Positioning accuracy	±0.05mm
X/Y axis Repeated positioning	±0.02mm
Maximum Feeding speed	60m/min
Chuck Maximum speed	60r/min
Maximum acceleration	0.6G
Machine Total weight(KG)	16500KG
Table maximum load(KG)	400kg
Power parameters	Three-phase AC 380V 50Hz
Protection Level of Total Power Supply	IP54

  III.Configuration

NAME	NO.	BRAND
FIBER LASER DEVICE
1.5-6kW fiber laser	1 set	Raycus/MAX
LASER HEAD
Laser head	1 set	WSX/BLT/Raytools
Main Machine
Transmission	5 set	LAPPING
Machine bed accessories	1 set	OWN MADE
Motor reducer	7 set	MOTOREDUCER
Electrical and pneumatic	1 set	SCHNEIDER SMC/AIRTAC
Server motor and driver	17 set	Yaskawa
Water cooling	1 set	HANLI
CNC CONTROL SYSTEM
FSCUT system	1 set	FSCUT 5000A
AUTOMATION SYSTEM (Optional)
Automatic loading system	1 set	HUARUI
Automatic unloading system	1 set	HUARUI

  IV.Cutting Capability and Application

• Cutting Materials

Cutting material: Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel, electrolytic steel, titanium alloy, manganese alloy, etc

• Application Industry

Ultra heavy tube cutting machine is widely used in aerospace, metal fabrication, machine manufacturing, rail transport, automobile manufacturing and food machinery.   V.Main Features

• 9-meter extended machine bed

This structure is convenient for loading and unloading, especially for super heavy tubes and profiles. Our machine bed, with three sections, is easy to be installed and transported. After coaxial processing, these sections will be at the same precision and have good performance.

• Bed body processing process

Jinan Huarui CNC LASER has an independent bed production workshop. Many important process such as bed welding, heat treatment, shot blasting, cleaning, painting are all carried out in the workshop. Strictly control the quality of the bed, and timely delivery.

• Super efficient tube processing capability

Pipe processing range 9000mm* φ20~350mm (square tube: 20*20~245*245mm). Other tube kinds: round pipe, square pipe, rectangular pipe, oval pipe, angle steel, channel steel, H-beam steel, I-beam steel

• More efficient automatic system(optional)

Whole bundle pipe loading and unloading; Automatic sorting of processing products and waste parts, reducing labor costs.

• Follow-up support device

Intelligent support design; Floating up and down following the change of pipe rotation radius; l Effectively solve the problem of low processing accuracy caused by long pipe sagging.

• Three-chuck structure

Three pneumatic chucks empowers the tube cutter with big clamping force, to clamp heavy tubes stably and easily. Three chucks can achieve cutting in reversed ways to realize the whole pipe processing of long tubes and achieve zero tailings for larger material utilization and cost-saving. With the strong clamping force, there would be no loosening or slipping of the heavy pipe, which can achieve more stable feeding and more precise cutting.

• Unique Chuck Release Detection Function

Extend equipment service life, reduce equipment maintenance time, and make laser tube cutting easier; It greatly improves the reliability of the chuck operation, and is the core support technology and process system for dual chucks to achieve “zero” tailings.
